Pumps
C&C Pneumatics - Pumps
C&C Pneumatics are the distributor for Alphadynamics pumps. Discover our premium range of industrial pumps including Ruby AODP, RubyShine FDA, Nayara peristaltic pumps, magnetic drive pumps, centrifugal pumps, flexible impeller pumps, screw pumps, shock absorbers, oval gear meters & more – designed for efficiency, reliability, and FDA compliance across industries.
Ruby
Air Operated Diaphragm Pump (AODP) are fully manufactured in Europe. The brand-new pump design offers better pumping potentials, with bigger performance provided with economy.
High efficiency for pressure/capacity.
New generation diaphragms with embodied inner-outer piston.
Superior Air valve design as a single assembly incorporates non-stalling pilot & main airvalve in one single unit.

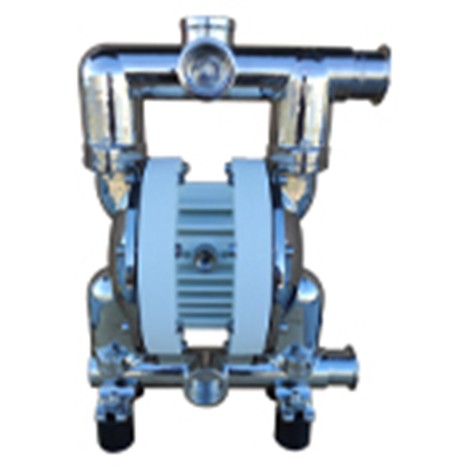

RubyShine
Air Operated Diaphragm Pump (AODP) are fully manufactured in Europe. Rubyshine are manufactured to meet FDA requirements. The entire range of these pumps is made of AISI 316 Stainless Steel with a surface roughness of 0.8μm while the PTFE and EPDM diaphragms are of new technology with an integrated piston.
Ecological design, economical air consumption.
New air valve design, with fully controlled air flow.
New generation and specially designed PTFE diaphragms with integrated piston for long life (compound) with FDA certification.
Nayara
Nayara Peristaltic Pumps (Roller Pump). This positive displacement pump is used for a variety of fluids. These can pump large solids with extremely high suction capabilities.
Unlimited dry run operation.
Full dosage control.
FDA tubes on request

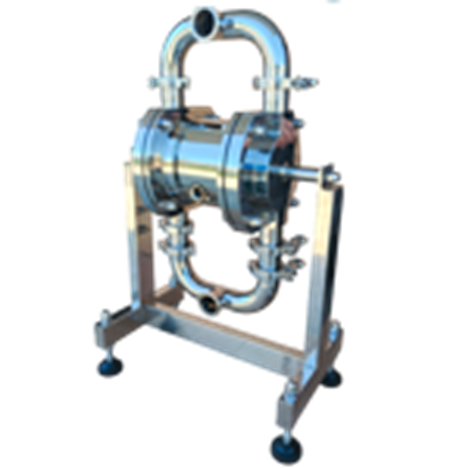

RubyPharma
Air Operated Diaphragm Pump AODP. RubyPharma Air Diaphragm Pump are designed specifically for food, beverage, and cosmetic applications. They can handle a wide range of viscosities - from low to highly viscous liquids - and can process fluids containing suspended particles. Compliant with FDA standards, RubyPharma Air Diaphragm Pumps are constructed from mechanically polished AISI 316L stainless steel featuring an exceptional surface finish of the pump is equipped with standard Tri-Clamp connections.
ADM
ADM Magnetic Drive Pumps. ADM magnetic coupling pumps have a special design without a mechanical seal that makes them suitable for pumping corrosive and hazardous liquids thanks to their high chemical resistance and the absence of leaks.
The structure is very simple, as a result of which the pump requires very reduced maintenance, resulting in savings in repair and spare parts costs over the life of the pump. The external magnet placed on the drive shaft transmits the movement to the internal magnet connected to the impeller, which rotates and moves the fluid through the pump.
ADH
ADH Horizonal centrifugal pumps. Non-metallic centrifugal pumps with mechanical seal and open impeller.
ADH centrifugal pumps with mechanical seal are made of plastic materials (Polypropylene and PVDF) and are suitable for highly corrosive liquids containing solid suspensions.
They operate with a monobloc motor (max 3000 rpm). Their special design with open impeller allows pumping even for very dirty liquids with a viscosity of up to 500 Cps (at 20°C) containing solid suspensions
ADV
ADV Vertical Centrifugal Pumps. The ADV series vertical centrifugal pumps are manufactured from thermoplastic materials (PP and PVDF) and are suitable for pumping hazardous and corrosive liquids with small solid suspensions. The open impeller allows continuous pumping even in very dirty liquids with a viscosity of up to 500 cps (at 20°C) and with small solid suspensions.

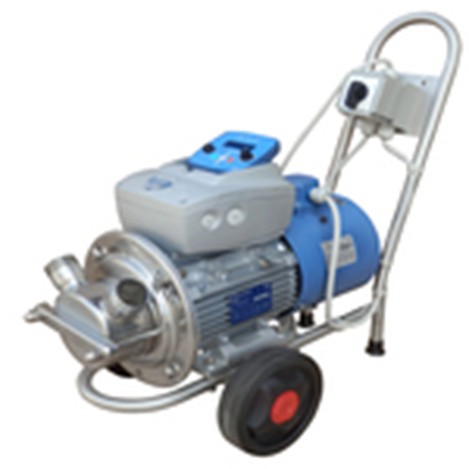

AD
AD Flexible Impeller Pumps. The AD series of pumps are flexible impeller pumps . Due to their design, these pumps have a reversible flow, offer self-priming and can pump from a maximum height of 5 meters. This type of pump is designed to pump low and high viscosity products as well as products containing particles. Instant suction from depths of up to 5 meters, even when running dry.
Atlas
Atlas Screw Pumps. Positive displacement pumps using rotating screws to move fluids. Higher performance and elongated geometry rotors. Low service requirements and improved performance characteristics. Reduced vibrations and turbulence for smooth operation. It can be placed vertically or horizontally depending on the application and works in both directions.
ADPD
ADPD Shock Absorbers. Shock absorbers can be used even for liquids containing solid suspensions and do not require calibration or manual adjustment to operate. The ability to reduce pulsations and vibrations, offer excellent operation and smooth fluid flow.
The wide range of construction materials allows them to be used for a wide range of liquids with which they are chemically compatible, while they can also work in potentially explosive atmospheres. Shock absorbers have a pneumatic valve connected to the diaphragm.
ADF
ADF Oval Gear Meters. The ADF meter series is a complete range of positive displacement meters that use the gear principle. This type of meter offers high accuracy (better than +/-0.5%), is not affected by viscosity (1,000,000) and has low pressure loss.
With a flow range from 2 liters per hour to 1,500 liters per minute, ADF meters are available in various materials and are offered either as a pulser only or in combination with a digital display of various capabilities.
ADE
ADE Conical Impeller Pumps. Solid water transfer pumps are stainless steel pumps of special design with a conical screw for the transfer of fragile solids with suspensions with a diameter of up to 75mm at a content of up to 45% in the solution, without strain. This is because the helical impeller of the pump as well as the special casing prevent the pump from clogging and causing damage to the suspended solids of the product.
